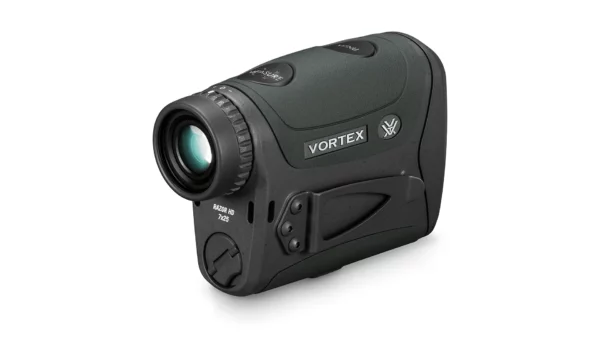

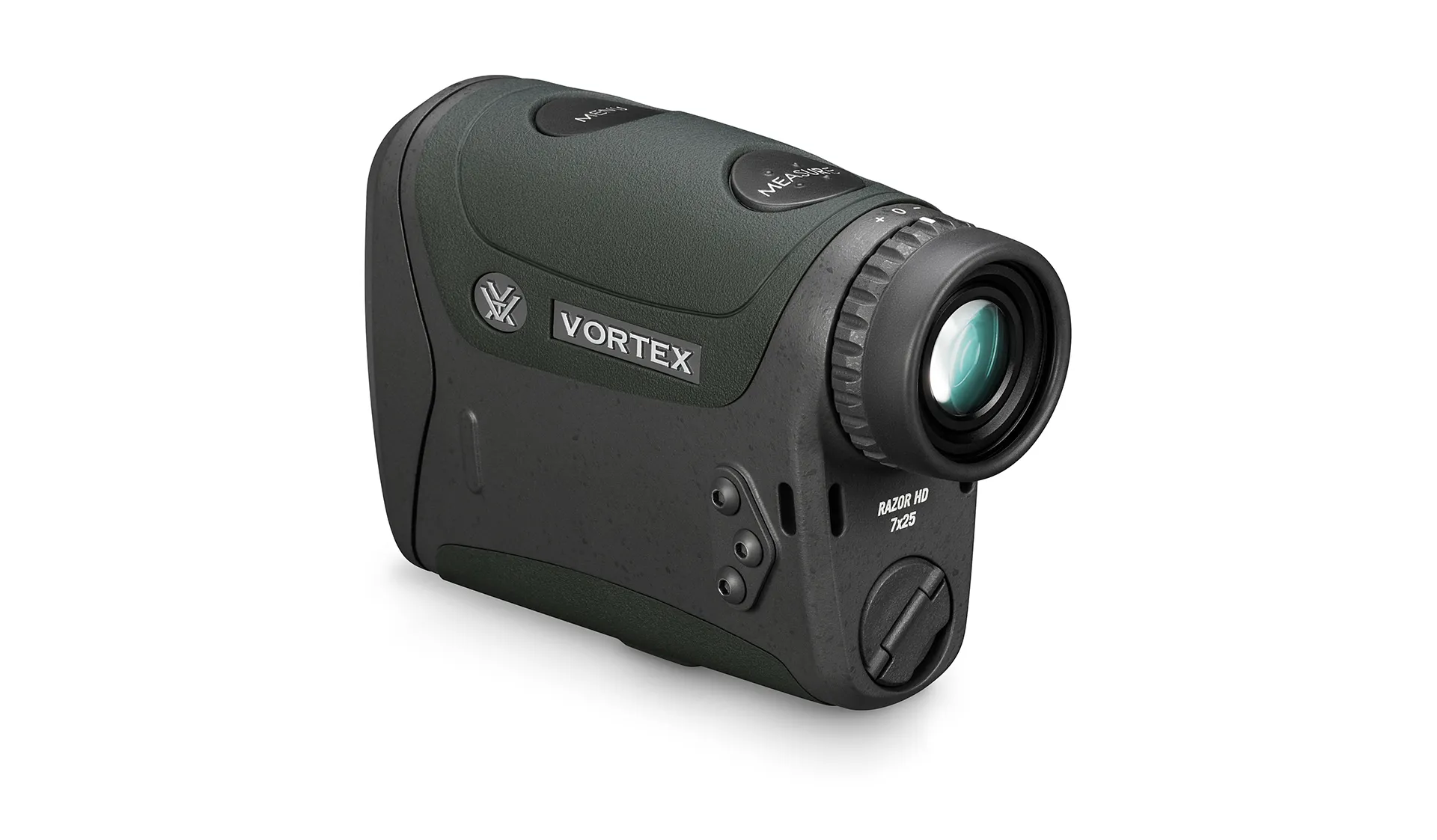

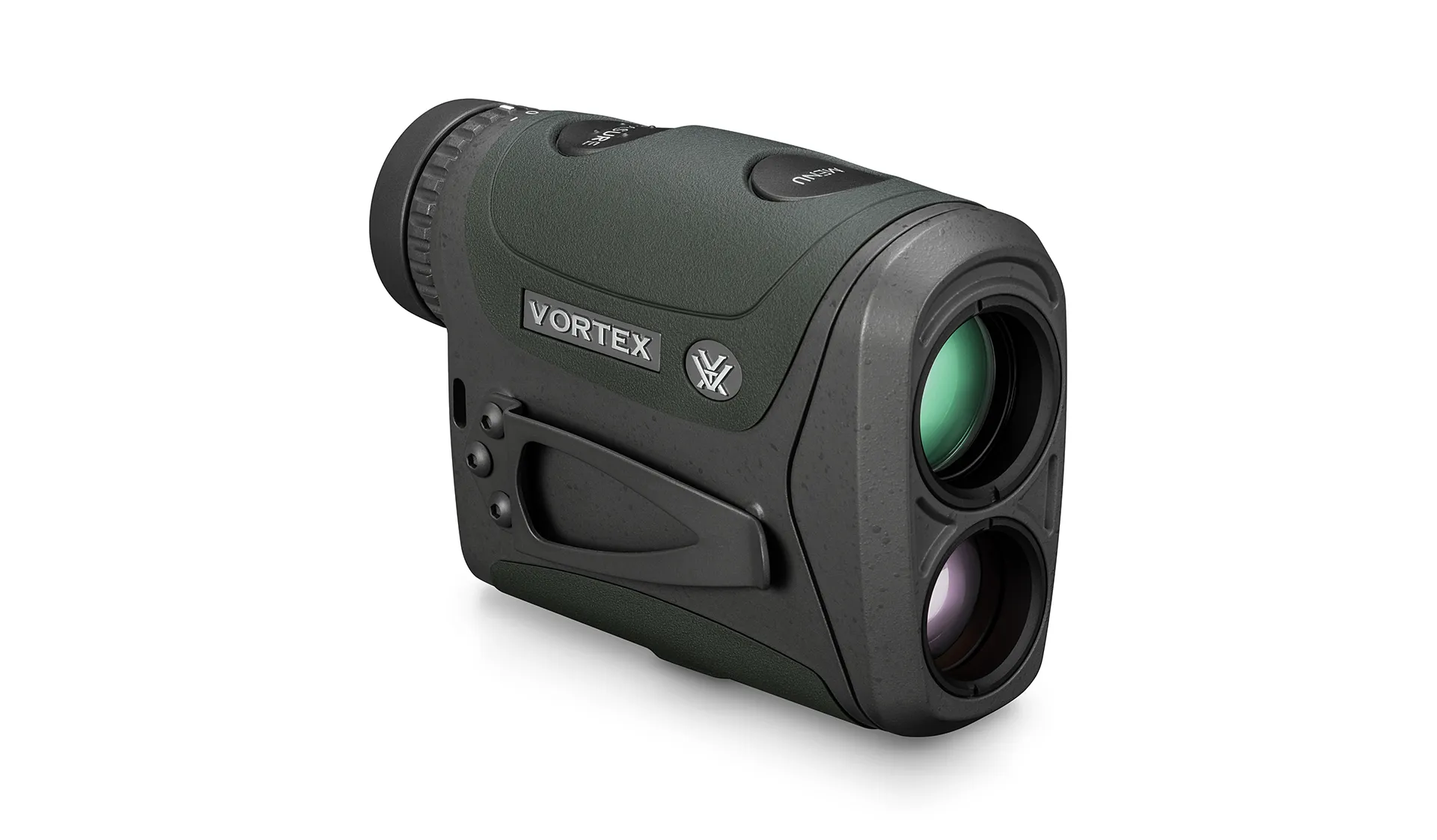

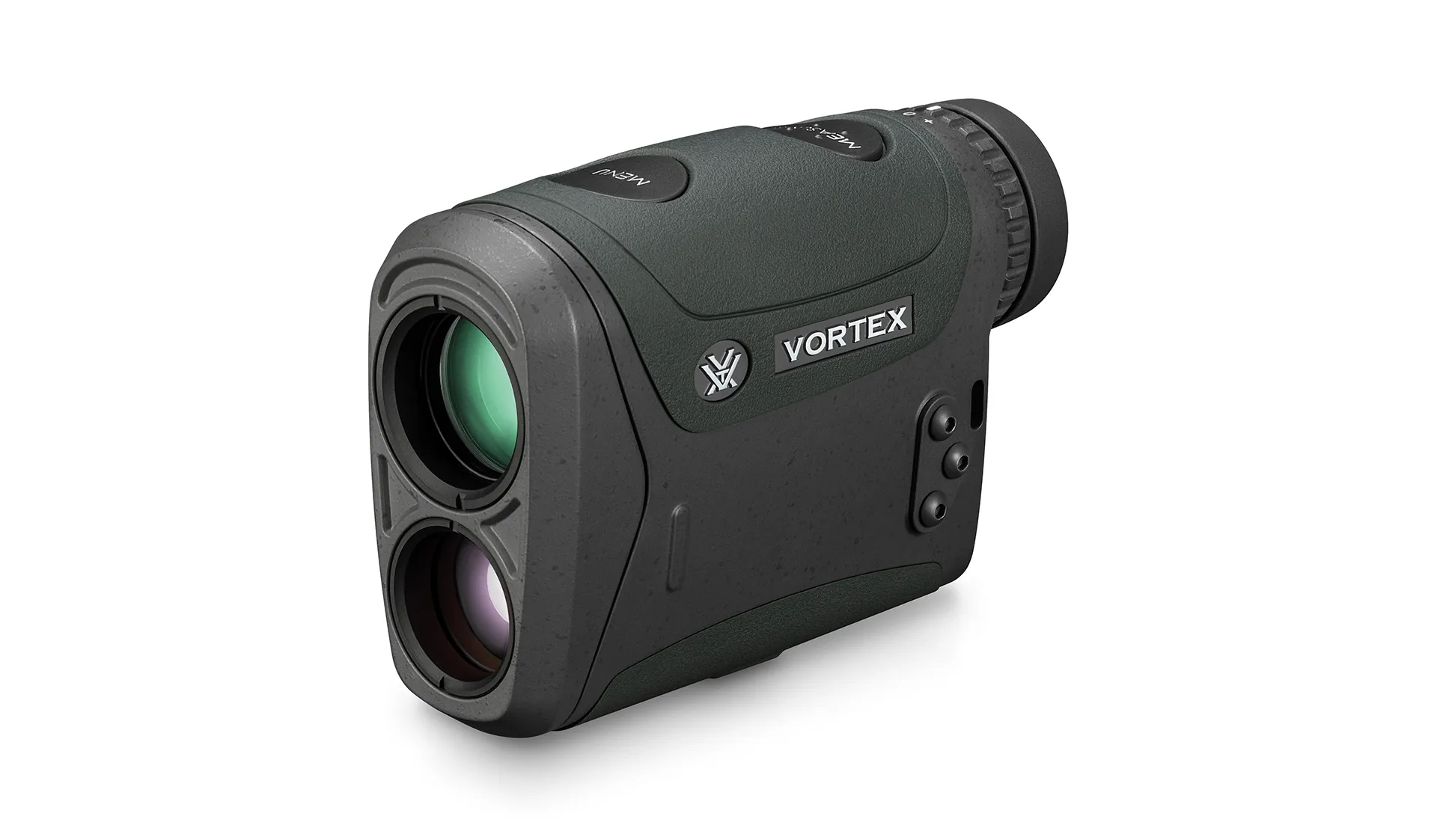

Vortex Razor® HD 4000 Rangefinder
Save 25%
MSRP: $729.99
Member Price: $547.49
Shipping Method: USPS / UPS / FedEx
Estimated Order Lead Time: 7-10 business days
Returns & Exchanges: Return to Quest within 30 days of purchase date, product must be unopened.
HCD Corrected Shoot-To Range Reticle
Overview
When the game comes down to inches the window of opportunity is small, the Razor® HD 4000 delivers the ranging data you need to make your first shot count. Its advanced modes adapt to any field conditions, providing consistent, repeatable performance when you can’t afford to miss. Compact and rugged. Capable of ranging reflective targets out to 4,000 yards. It's designed for serious hunters and shooters who demand performance that will never let them down.
| DEER RANGE | TREE RANGE | REFLECTIVE RANGE | |
| NORMAL MODE | 1,600 yds (1,463 m) | 1,800 yds (1,646 m) | 2,400 yds (2,194 m) |
| NORMAL MODE (SCAN) | 2,000 yds (1,829 m) | 2,200 yds (2,012 m) | 2,400 yds (2,194 m) |
| ELR MODE | 2,200 yds (2,012 m) | 2,500 yds (2,286 m) | 4,000 yds (3,658 m) |
Specifications
| Magnification | 7x |
|---|---|
| Objective Lens Diameter | 25 mm |
| Reticle | HCD Corrected Shoot-To Range |
| Eye Relief | 17.5mm |
| Angular Field of View | 6.5º |
| Linear Field of View | 341' @ 1000 yds |
| Range Reflective (yards) | Up to 4,000 yds. |
| Range Tree (yards) | Up to 2,500 yds. |
| Range Deer (yards) | Up to 2,200 yds. |
| Min Range | 5 yds. |
| Accuracy | .5 yds @ 100 yds. |
| Length | 4.4" |
| Height | 3.1" |
| Width | 1.7" |
| Weight | 9.9 oz. |
| Max Angle Reading | +/- 89º |
Features
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
|---|---|
| XR™ Plus Lens Coatings | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| Dielectric Prism Coatings | Multi-layer prism coatings provide bright, clear, color-accurate images. |
| ArmorTek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. |
| Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Shockproof | Designed to withstand the highest levels of impact. |
| Tripod Adaptable | Compatible with a tripod adapter, allowing use on a tripod or car window mount. |

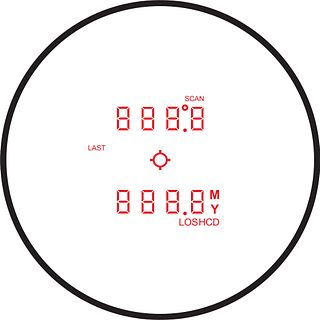

Reticle
HCD CORRECTED SHOOT-TO RANGE
The Razor HD 4000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
Included in the Box
- Carrying case
- Lens cloth
- Hex wrench
- CR2 battery
