Dirwin Pioneer Lite Fat Tire E-Bike
Save 20%
Original price was: $1,499.99.$1,199.99Current price is: $1,199.99.
MEMBER DISCOUNT CODE
XXXXXXXXXX
Become a member to access your Quest Hunt Co. discount code.
Join Quest Hunt Co for member-only pricingUncompromising Power
The Pioneer Lite fat tire electric bike is ready for any rough conditions, from mountain paths to gravel roads. A powerful 750W motor, up to 50 miles range, and 26“ x 4.0” wearproof fat tires will take you anywhere with confidence. Your ride will be smooth thanks to the hydraulic suspension fork and when it’s time to stop the 180mm Hydraulic Brakes are always up to the task. The Pioneer Lite is IPX5 water resistant and also includes front and rear lights along with an ultrabright color LCD display so your adventure doesn't have to stop when the sun sets.
Color Screen Display
The Pioneer Lite’s ultrabright color LCD display offers crystal clear visibility in any weather and it features all the information you need such as Speed, Odometer, Battery level, and more.
Long Lasting Power
Our fully integrated, removable battery combined with our best in class controller, which features Dirwin’s “Power Smart” technology, enables the Pioneer Lite to achieve the highest power output while consuming the least amount of electricity so that you can get up to 50 miles on a single charge!
High Performance Motor 750Watt 80Nm
Sand, gravel, or snow... Conquer all-terrain with Dirwin Pioneer's high performance 750 Watt rear-drive motor which delivers all the power you need. Its 80Nm of torque won't leave you stranded and you have absolute control of the power delivery with Shimano's 7-speed Altus gears and 5-levels of pedal assistance.
Whether you're looking for an electric hunting bike, or just an ebike for your daily commute, the Pioneer Lite has you covered.
Product Highlights
- 750W 80NmMotor
- 350 lbsMax Load
- 26" x 4.0"Kenda Tires
- Aluminium AlloyFrame
- 26 MPHMax Speed
Specifications
Battery: 48V 13Ah Lithium Battery (11 lbs)
Motor: 750 Watts
Bike Frame: A6061 Aluminium Alloy (IPX5 Water Resistant)
Display: TFT LCD Color Display
Brakes: 180mm Hydraulic
Derailleur: 7-Speed Shimano Altus
Freewheel: Shimano 7-Speed
Shifter: Shimano 7S
Front Fork: Adjustable Hydraulic Suspension Fork
Charger: US-Standard 2A Smart Charger (fits all Dirwin batteries)
Range: 30-50 Miles
Pedal Assist: 5-Levels
Throttle: Half Twist
Tires: 26"x 4.0" Kenda Fat Tires
Saddle: HQ-Comfort Saddle
Charging Time: 5-8 Hours
Product Weight: 74 lbs (64 lbs w/o battery)
Total Payload Capacity: 350 lbs
Controller: 48V 25A
Chain Ring: 48T
Handle Bar: Φ22.2*700L
Seat Post: Φ30.4*350L
Seat Post Clamp: Φ35.0
Recommended Rider Height: 5'4" - 6'4"
UL Certifications: 2849 and 2271

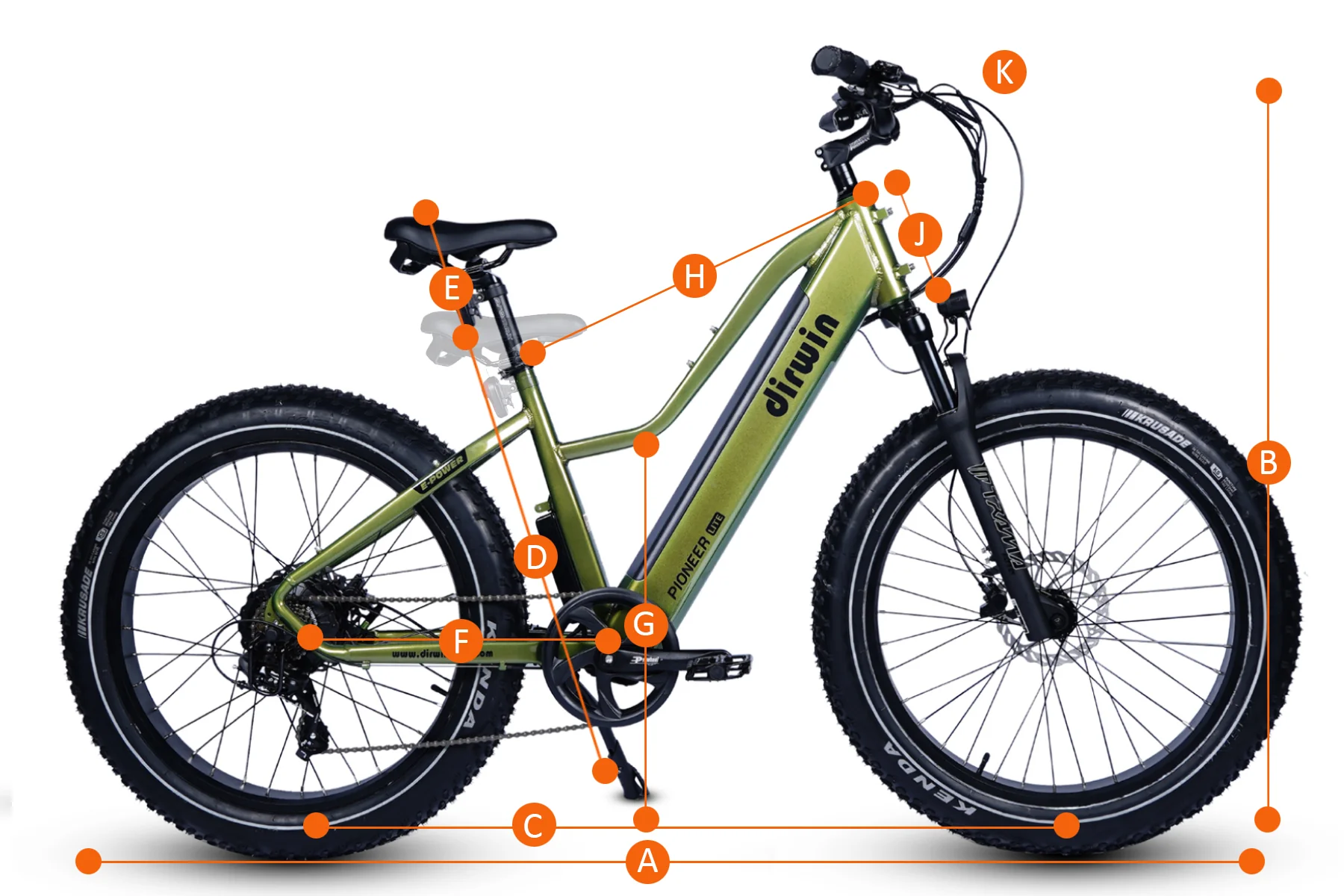

Geometry
- A. Total Length: 74.8"
- B. Handle Bar Height: 45.5"
- C. Wheelbase: 45"
- D. Minimum Seat Height: 30"
- E. Maximum Seat Height: 35.5"
- F. Chain Stay Length: 20"
- G. Standover Height: 31"
- H. Top Tube Length: 23"
- I. Wheel Diameter: 29"
- J. Head Tube Length: 6"
- K. Handle Bar Length: 27.5"
- M. Reach ：15.5"
